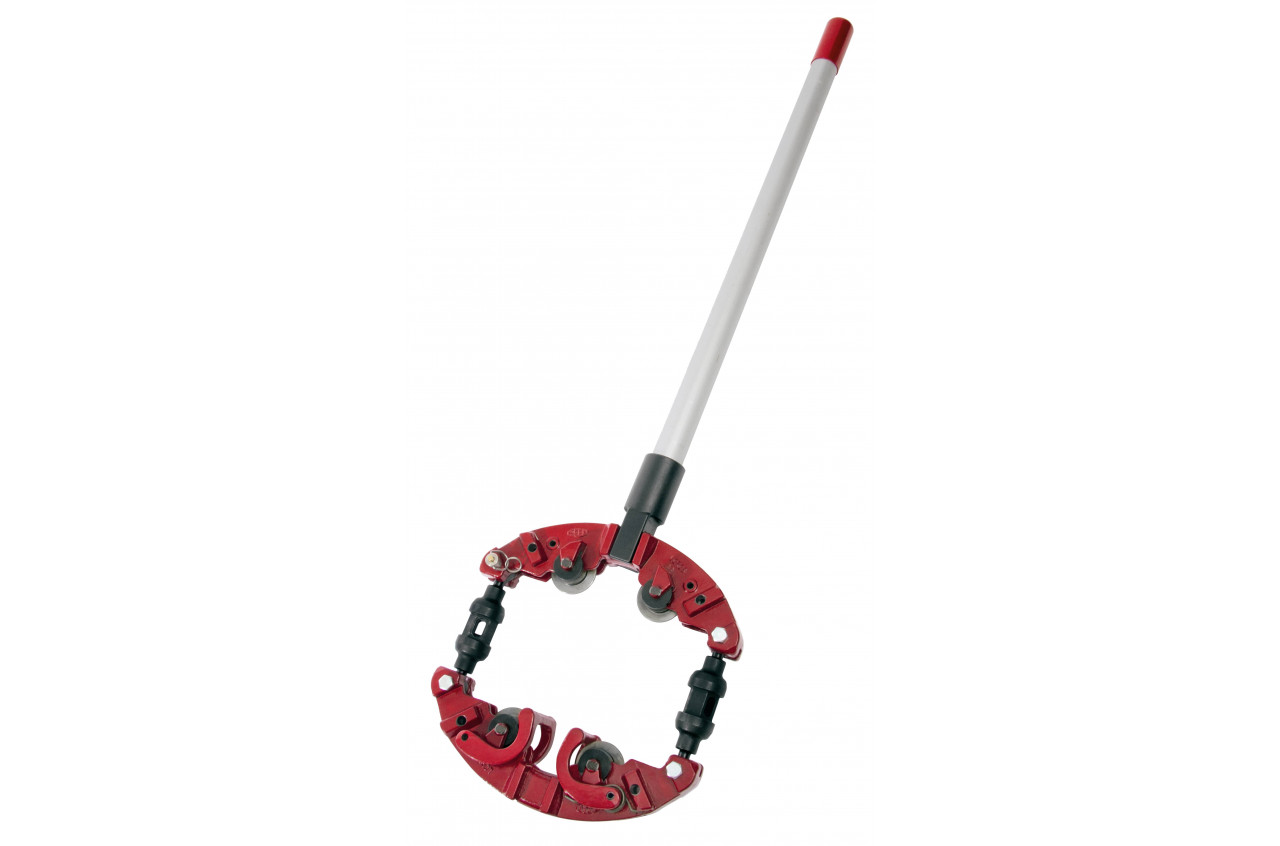

Low Clearance Rotary Pipe Cutters
Features
- The low profile design of these cutters requires only 5” (127 mm) clearance.
- Excellent for cold cuts.
- Pipe snaps off squarely once the operator completes the cut.
Specifications
Catalog No. | Item Code | Pipe Capacity | Cutter Wheel | Application | Length | Weight | ||||
---|---|---|---|---|---|---|---|---|---|---|
Steel in-nom. | Cast & Ductile Iron in-nom. | actual O.D. mm | in | mm | lbs | kg | ||||
LCRC4X | 03304 | 2 - 4 | - | 60 - 125 | HX4 | Steel/Stainless Steel Sch. 40 & 80 | 19 | 483 | 12.3 | 5.6 |
LCRC4I | 03306 | - | 2 - 4 | 60 - 125 | HI4 | Cast/Ductile Iron | 19 | 483 | 12.3 | 5.6 |
LCRC4S | 03307 | 2 - 4 | - | 60 - 125 | HS4 | Steel/Stainless Steel Sch. 40 | 19 | 483 | 12.3 | 5.6 |
LCRC8I | 03308 | - | 6 - 8 | 159 - 246 | RCI8-30 | Cast/Ductile Iron | 58 | 1473 | 42.6 | 19.4 |
LCRC8S | 03309 | 6 - 8 | - | 159 - 246 | RCS8-36 | Steel/Stainless Steel Sch. 40 | 58 | 1473 | 42.6 | 19.4 |
LCRC8X | 03311 | 6 - 8 | 159 - 246 | RCX | Steel/Stainless Steel Sch. 40 & 80 | 58 | 1473 | 42.6 | 19.4 | |
LCRC12I | 03312 | - | 10 - 12 | 266 - 358 | RCI8-30 | Cast/Ductile Iron | 61 | 1549 | 50 | 22.7 |
LCRC12S | 03313 | 10 - 14 | - | 266 - 358 | RCS8-36 | Steel/Stainless Steel Sch. 40 | 61 | 1549 | 50 | 22.7 |
LCRC12X | 03314 | 10 - 14 | 266 - 358 | RCX | Steel/Stainless Steel Sch. 40 & 80 | 61 | 1549 | 50 | 22.7 | |
LCRC16I | 03316 | - | 14 - 16 | 368 - 462 | RCI8-30 | Cast/Ductile Iron | 66 | 1664 | 60 | 27.3 |
LCRC16S | 03317 | 16 - 18 | - | 368 - 462 | RCS8-36 | Steel/Stainless Steel Sch. 40 | 66 | 1664 | 60 | 27.3 |
LCRC16X | 03318 | 16 - 18 | 368 - 462 | RCX | Steel/Stainless Steel Sch. 40 & 80 | 66 | 1664 | 60 | 27.3 |
More Information

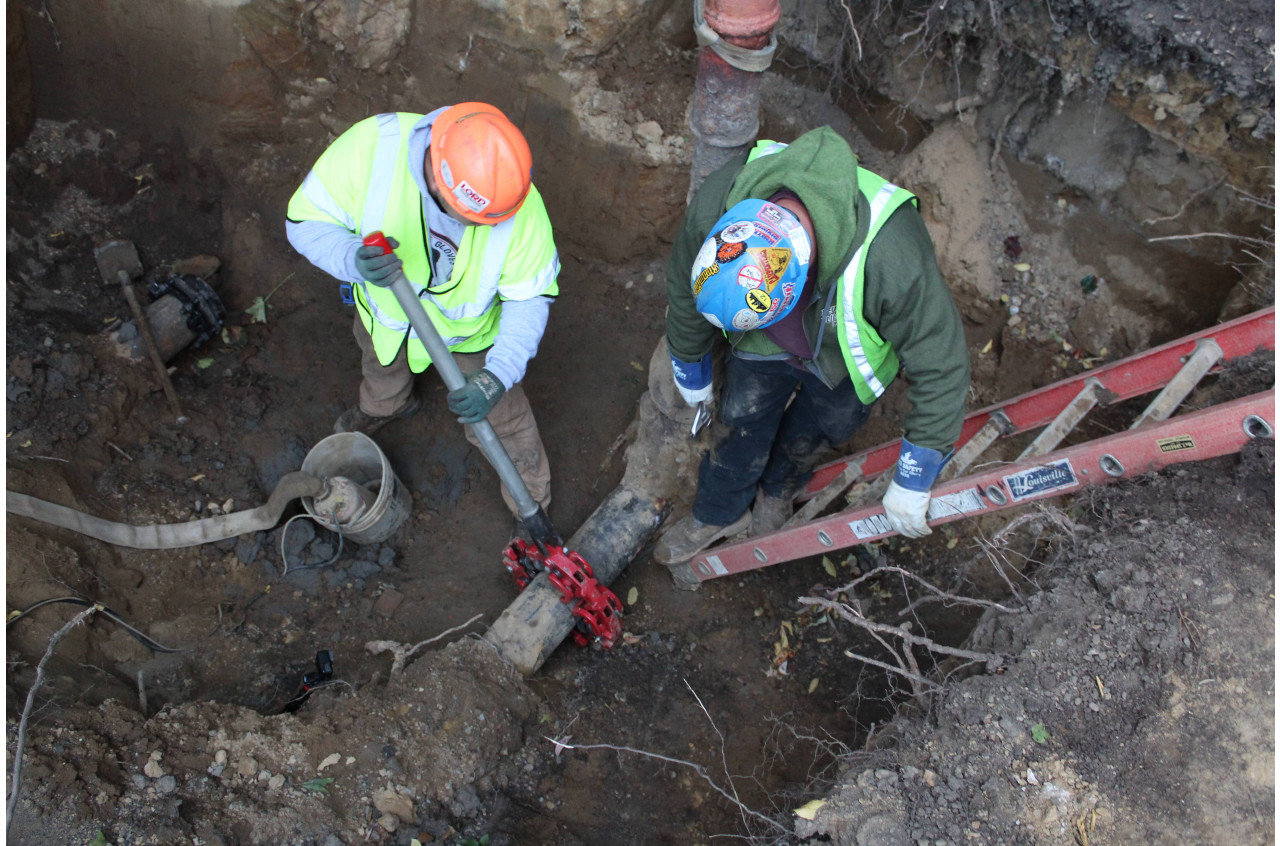

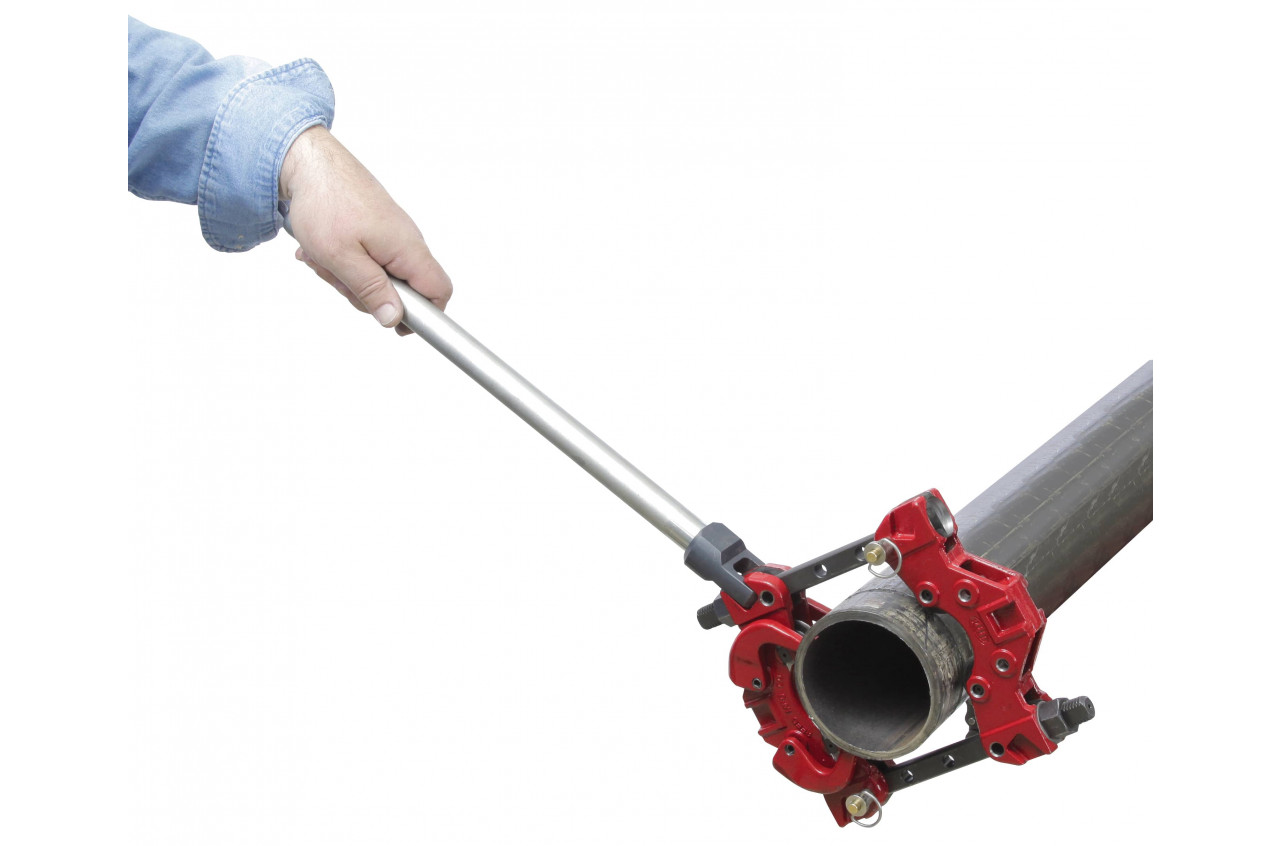

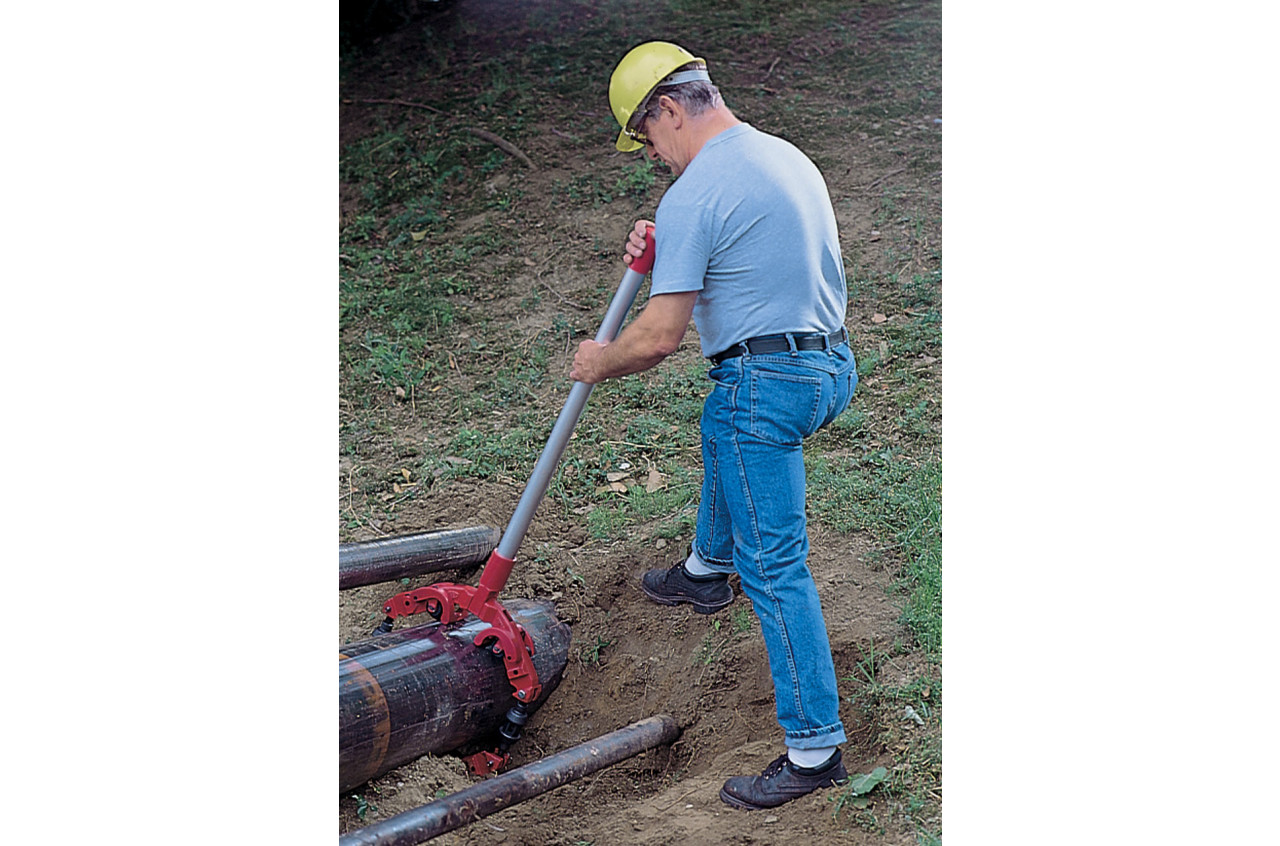

Cut pipe quickly and with minimal digging using REED Low Clearance Rotary Cutters. The low profile design of the LCRC models needs only 5 inch (127 mm) clearance for up to 16 inch pipe diameter. Safe, clean, straight cuts are easy with these manual-operated cutters. They cold cut large diameter steel, most stainless steel, ductile, and cast iron pipe in close quarters. LCRC cutters are supplied with a slip-on handle that is used to turn and tighten the cutter. With good leverage from the tool’s long handle, pipe snaps off squarely before the cutter wheels penetrate halfway through the pipe. Provides a square cut and can be used in close quarters anywhere – in the ditch, underwater, in noise-free zones, over head, in racks of pipes, etc. With general maintenance and cutter wheel replacement, REED’s Low Clearance Rotary Cutters last for decades.
Low Clearance Rotary Pipe Cutters are a REED invention! Cut pipe safely, easily, quickly and at a low cost. Provide a square cut and can be used in tight quarters anywhere – in the ditch, underwater, in noise-free zones, overhead, in racks of pipes, etc. With proper care and new cutter wheels, Low Clearance Rotary Pipe Cutters last for decades.
Accessories & Common Parts
Rotary Pipe Cutters Accessories
Videos
The complete collection of Reed Training Videos can be found under the Resources menu.

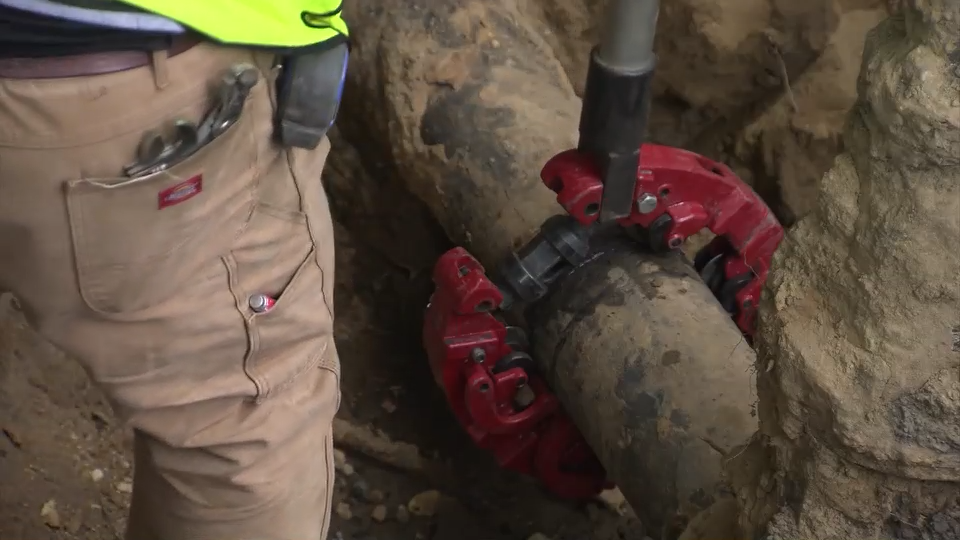

Low Clearance Rotary Pipe Cutters on Location
To download this video, select your preferred format:
MP4 (379 MB)
