05365 - 5401TMSO - Discontinued Roll Groovers, Power Drives, Threaders & Dies
This item has been discontinued.
Replacement 05303 - 5301PDCOMP
05365 - 5401TMSO - Discontinued Roll Groovers, Power Drives, Threaders & Dies
Catalog No.: 5401TMSO
Item Code: 05365
Specifications
Description

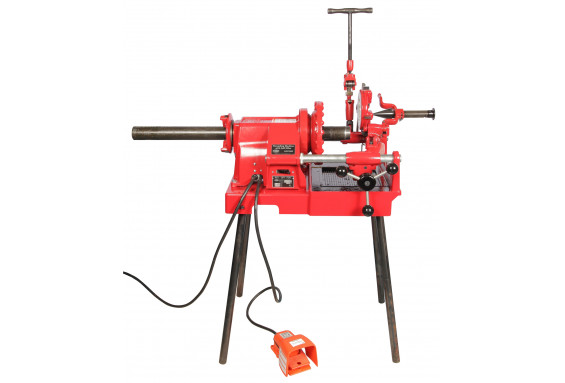

Pipe Threading Machine 1/2 HP, 120V single phase 60Hz, NPT Dies[1]
Capacity
in-nom.
1/8 - 2 Pipe
1/4 - 2 Bolt
1/4 - 2 Bolt
actual O.D. mm
30 - 50 Pipe
6 - 50 Bolt
6 - 50 Bolt
Gross Weight
lbs
175
kg
79.4
-
Not available for sale in China.
[1]
COMPLETE units include pipe threading machine, footswitch, legs, R811 Universal Die Head, 1 gallon Threadguard cutting oil, and one set each High Speed Steel Universal Dies: 1/2” - 3/4”and 1” - 2” NPT or BSPT, depending on model.
Features
- Self-priming pump generously floods the pipe with oil while threading.
- Convenient open work space features a large, integral oil reservoir and an easy-to-remove chip collection tray.
- Three-spoke handwheel easily moves the carriage and starts the dies for threading.
- Centers and chucks pipe and conduit and rotates it for cutting, threading, and reaming operations.
