Bevel Boss® Cordless Pipe Bevelers
Features
- Portable pipe beveler uses battery power to bevel plastic pipe quickly.
- Provides a quick, easy and safe way to bevel plastic pipe.
- Adjustable beveler creates external bevel on 2" and larger diameter plastic pipe.
- Ideal for large diameter plastic pipe.
Specifications
| Catalog No. | Item Code | Description | Bevel Length | Capacity | Weight | ||
|---|---|---|---|---|---|---|---|
| in-nom. | mm | lbs | kg | ||||

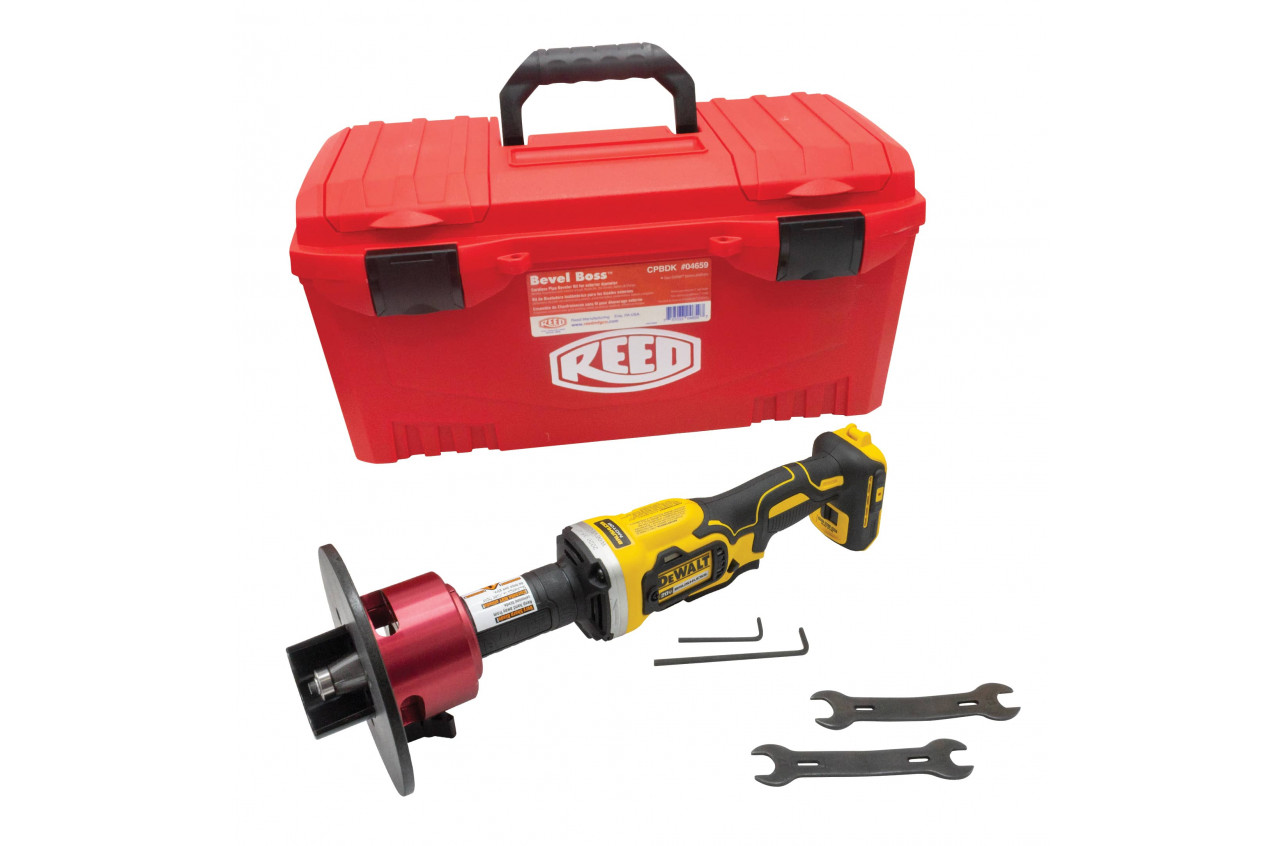

| CPBDBAT | 04653 | Kit with Beveler Adapter, Router Bit, DeWalt® Die Grinder and Battery | RBIT1: Adjustable 1/8” - 5/8”[1] | 2" and up | 50 | 8.3 | 3.8 |
| CPBDBT | 04658 | Base Tool with Beveler Adapter and DeWalt® Die Grinder | Depends on Router Bit Selected | 2" and up | 50 | 3.95 | 1.8 |
| CPBDK | 04659 | Kit with Beveler Adapter, Router Bit, DeWalt® Die Grinder, Battery and Charger[2] | RBIT1: Adjustable 1/8” - 5/8”[1] | 2" and up | 50 | 9.3 | 4.2 |
| CPB2DBCG[3] | 04661 | Kit with Beveler Adapter, Router Bit, DeWalt® Die Grinder, 2 Batteries and Charger[2] | RBIT1: Adjustable 1/8” - 5/8”[1] | 2" and up | 50 | 10.6 | 4.8 |
| CPBDKE | 04666 | Kit with Beveler Adapter, Router Bit, DeWalt® Die Grinder - EXPORT ONLY | RBIT1: Adjustable 1/8” - 5/8”[1] | 2" and up | 50 | 5.5 | 2.5 |
Add RBIT2 for bevel length of 7/16” - 1”
Charger is type B, 120V
NEW!
More Information

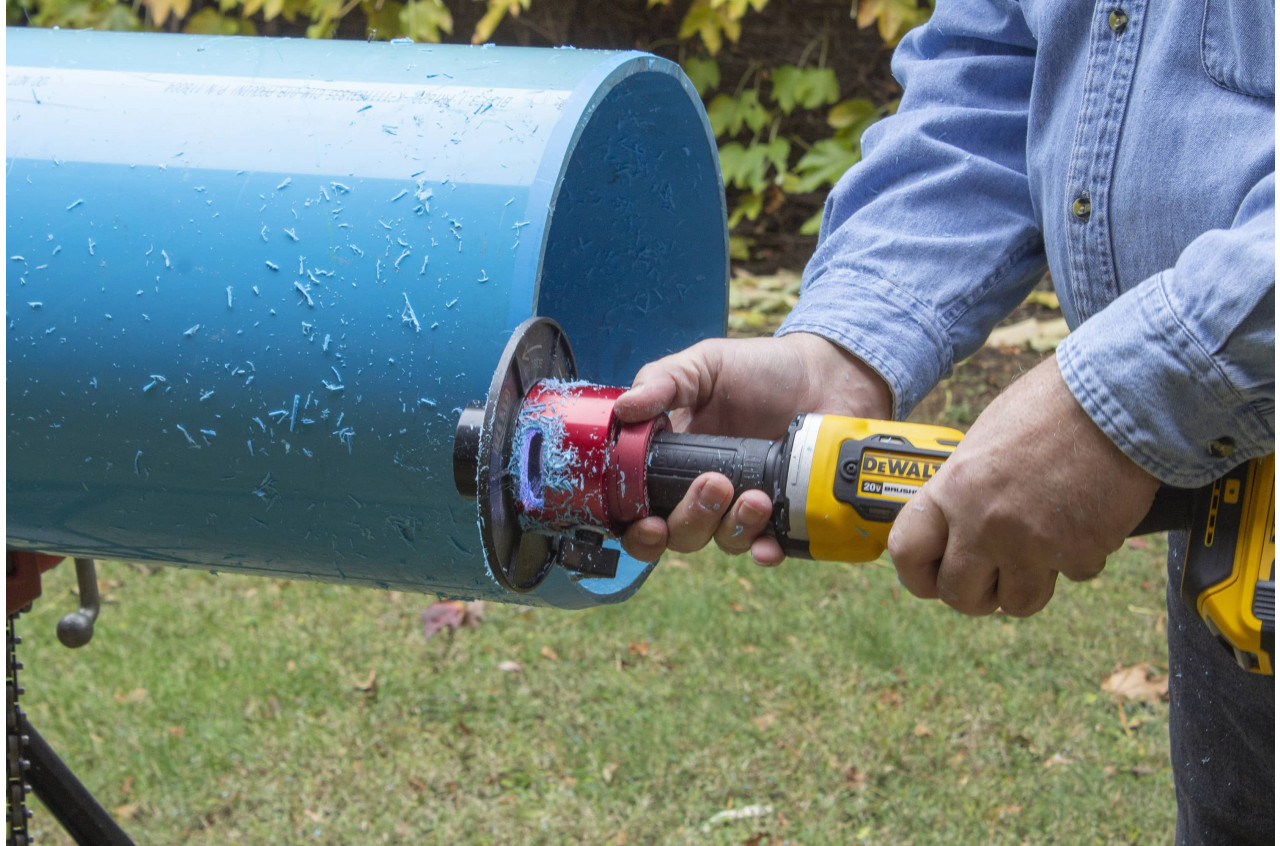

Bevel Boss® cordless pipe bevelers quickly and safely bevel 2 inch diameter and larger plastic pipe. The tool's unique design makes REED Bevel Boss® the only tool in the industry that provides a safe and speedy way to bevel. Cordless pipe beveler trims small to large diameter plastic pipe, including pipe already in the ditch. This lightweight tool significantly reduces prep time by quickly and consistently beveling when preparing multiple pipe lengths. These pipe bevelers are used on PVC and CPVC plastic pipe including C900, Corzan® CPVC, Bionax® PVCO (C909) and also ABS. Add bevels on most PVC glued joints and some sizes of bell and gasket joints. Adjustable for bevel length up to 1 inch, the required carbide Router Bits cut evenly and efficiently. Battery-powered, this cordless pipe beveler has no fumes! Plus, the guide plate eliminates guesswork about the bevel and yields a consistent result. To eliminate damage to the gasket, a pipe bevel is required when installing into a pipe bell. Bevels on cement joints allow for even distribution of solvent cement glue to maximize glue contact area. Always defer to pipe manufacturer specifications for bevel recommendations.
In addition to complete beveling kits, there are Beveler Adapter Heads to fit Milwaukee®, Bosch® or DeWalt® die grinders. Beveler adapters permit temporary conversion of the die grinder to serve as a beveler.
Cordless pipe beveler adapts to shape pipe interiors, too. For instance, electrical and utility contractors deburr to make pipe interiors snag-free for running wires. To create internal bevels on plastic pipe or conduit of 2 inch inside diameter (ID) or larger, add the REED beveler shroud with guide plate, CPBIDS.
NOTE: International users who source their own die grinder may need to change the collet on the die grinder in order to fit REED Router Bits.
REED Bevel Boss® allows flexibility by offering a pipe beveling solution compatible with three different die grinder brands.
Accessories & Common Parts
Router Bits
Bevel Boss® Pipe Beveler Heads
Bevel Boss® Cordless Pipe Beveler Accessories
Bevel Boss® Vacuum Adapter
