PE Pipe Peeler
Features
- One tool peels a range of pipe, not just a single size.
- The tool spirals back onto the pipe and peels a clean path every revolution.
- Peeler creates a uniform peel even on out-of-round pipe as its spring-loaded design adjusts for high and low spots on pipe.
- Strong thermoplastic rollers and plated sides on chain resist corrosion.
Specifications
| Catalog No. | Item Code | Pipe Capacity | Weight | ||
|---|---|---|---|---|---|
| in-nom. | actual O.D. mm | lbs | kg | ||
| PEPEEL6 | 04631 | 1 1/2-6 | 48-168 | 3.1 | 1.4 |
| PEPEEL12 | 04632 | 6-12 | 168-324 | 10.9 | 5.0 |
More Information

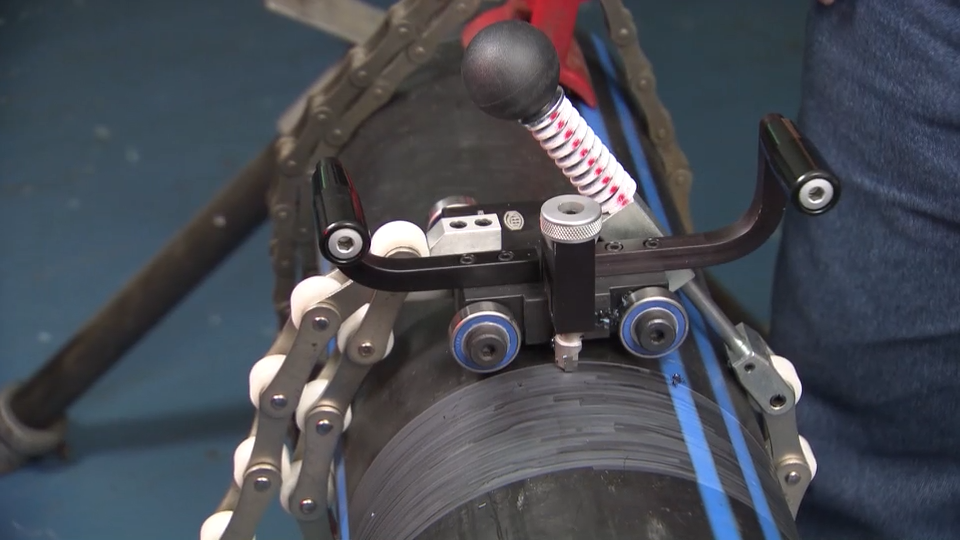

PE Pipe Peeler prepares the outside diameter of polyethylene pipe for electrofusion by removing the oxidized layer and contaminates. PE Pipe Peeler can be used on the edge of the pipe or anywhere along the pipe with sufficient clearance for turning the tool around the pipe. Chain with thermoplastic rollers of acetal copolymer and plated side plates resist corrosion. Spring-loaded blade holder keeps constant pressure on the pipe for a smooth finished surface. The constant blade tension keeps the cut at a consistent depth. Its four-sided, carbide blade provides a cutting edge on each side. Rotate blade before replacement for additional, fresh cutting edges.
Accessories & Common Parts
PE Pipe Peeler Blades & Common Parts
Documents
Videos
The complete collection of Reed Training Videos can be found under the Resources menu.
