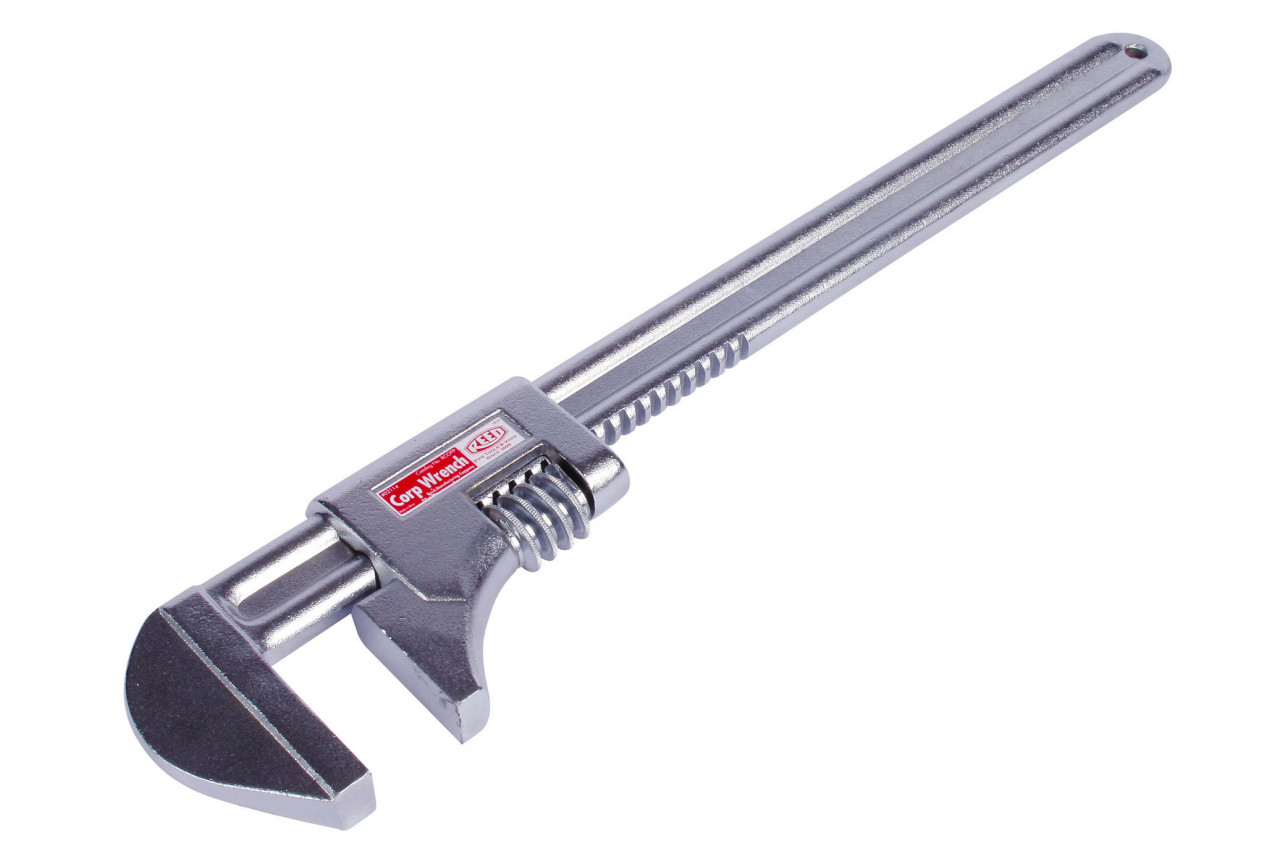

Smooth Jaw Wrenches
Features
- Large capacity wrenches that will not mar chrome, brass or other fittings.
- Smooth jaws are gentle on finished and visible surfaces.
- RCORP and RCORP3 are strong with forged steel construction.
Specifications
| Catalog No. | Item Code | Maximum Actual Opening | Length | Weight | |||
|---|---|---|---|---|---|---|---|
| in | mm | in | mm | lbs | kg | ||
| RCORP3 | 02117 | 4 1/2 | 114 | 18.625 | 473 | 5.0 | 2.3 |
| R110HEX | 02111 | 2 5/8 | 67 | 10 | 254 | 1.6 | 0.7 |
| RSPUD | 02112 | 2 5/8 | 67 | 11 | 279 | 2.6 | 1.2 |
| RCORP | 02114 | 4 1/2 | 114 | 18 | 457 | 4.4 | 2.0 |
More Information

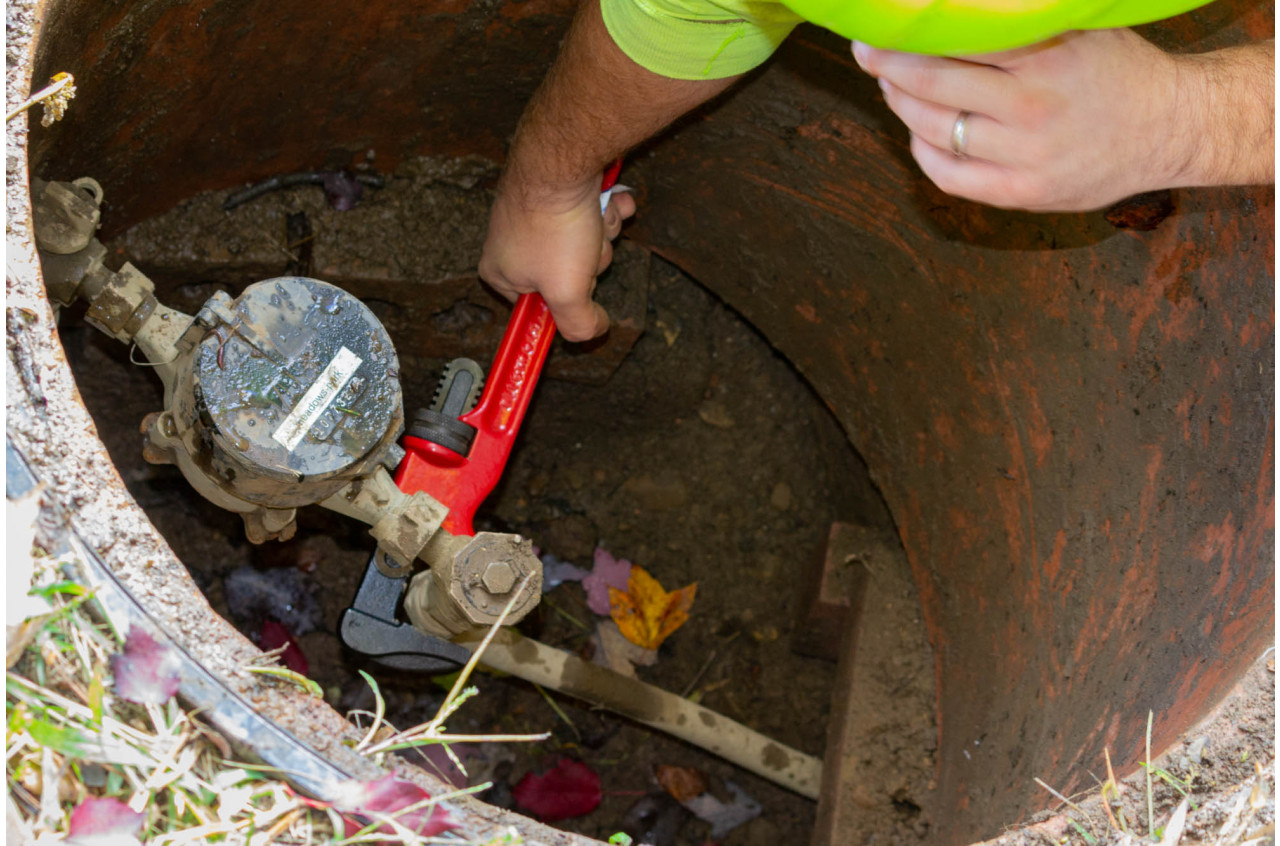

REED offers large capacity Smooth Jaw Wrenches for geometric and delicate work. The R110HEX hex wrench works for hex-shaped fittings on meters, drains, spuds, and chrome valves without damage from teeth. The RSPUD smooth jaw wrench is for square, hex, or octagonal shapes where toothed pipe wrenches are not a good option. Both are heavy-duty, made from ductile iron with forged steel hook jaws, and offer larger capacity than adjustable wrenches. REED’s RCORP and RCORP3 smooth jaw wrenches fit up to 2” corp stops and open to a generous maximum of 4 1/2”. RCORP3 is a smooth jaw wrench for work on finished and visible surfaces. Rotate handle end for three different disc slots sizes: .450”, .390”, .312”. The slots fit standard and ball valve corporation stop keys. A coarse adjustment thread and a large thumbscrew provide quick, easy adjustments for the numerous size changes encountered during jobs. Ford Meter Box® and A.Y. McDonald®, along with other brass fittings manufacturers, recommend a smooth jaw wrench when tightening corp stops, either into the pipe or tapping saddle, or for tightening the service line connection on any waterworks brass valve or fitting.
