04339 - PES6DBM - Double Squeeze™ PE Squeeze Tools - Manual

PES6DB
04339 - PES6DBM - Double Squeeze™ PE Squeeze Tools - Manual
Where To Buy »

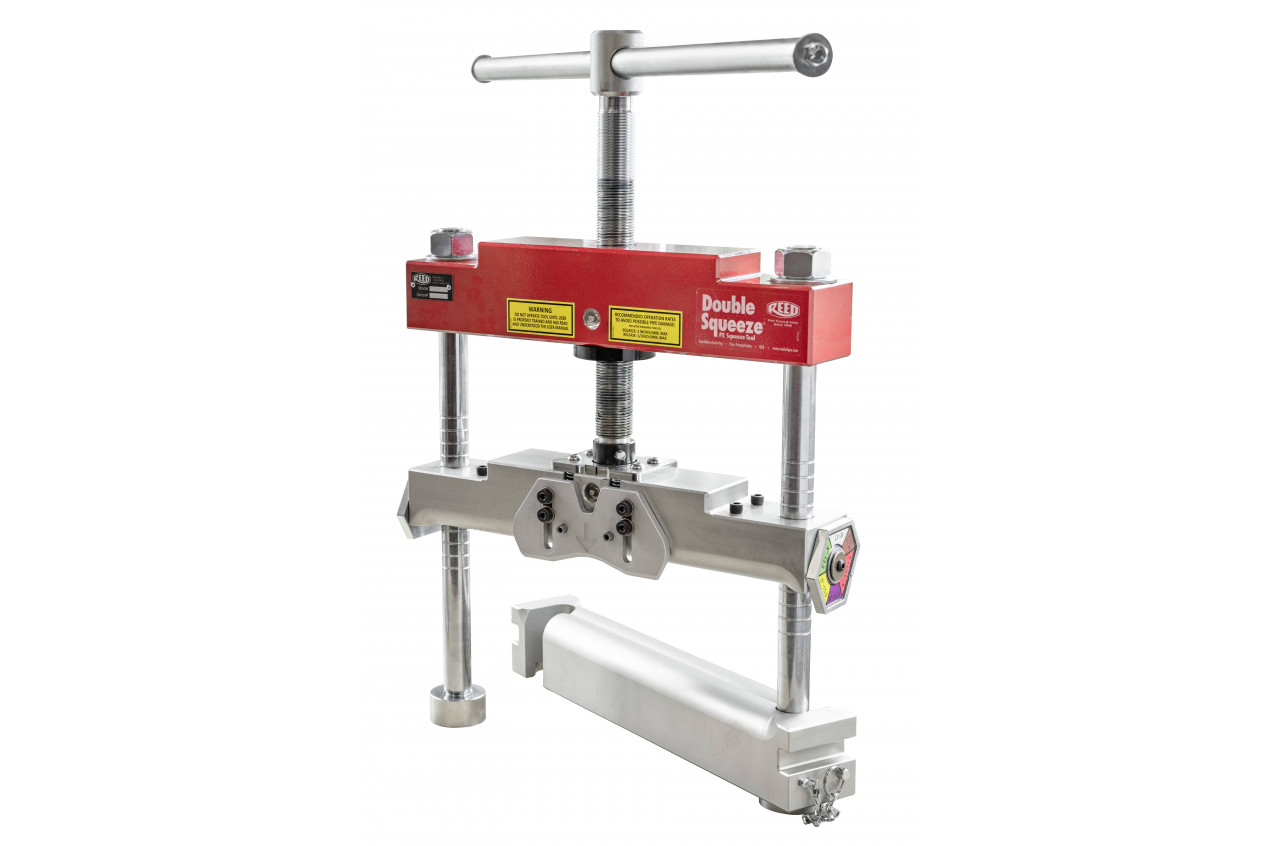

PES6DB - PES6DBM by Reed Manufacturing
PES6DB
  • PES6DB
Catalog No.: PES6DBM
Item Code: 04339
Where To Buy »
Specifications
Capacity
in-nom.
-
actual O.D.
63 - 200 mm
Pipe/SDR Stops
98288 & 98289
pair of each
Height
in
32.75
mm
832
Weight
lbs
75
kg
34
-

NEW!

Features

  • Squeezes up to 200 mm SDR 11 with a double-bar design for optimal PE squeeze off.
  • Spring-loaded centering aids increase safety by assisting the user in centering the tool on the pipe.
  • Advanced ball bearing thrust design decreases effort needed to achieve an effective shutoff.
  • Hand placement areas on bottom bar makes it easier to swing open the tool.
  • Color-coded metric measure stops provide user confidence in matching up the stops.
  • Bottom bar is removable for transport, reducing the carry weight for the operator.
  • High strength, aircraft grade aluminum increases ergonomics and decreases tool weight.
  • Squeeze and release scale marks on tie-rods for user convenience.



PES68M11 (98288)
Standard Metric SDR 11 Stops, pair

PIPE/SDR (IPS) Wall Thickness
63 mm SDR 11 3.8 mm
90 mm SDR 11 8.2 mm
110 mm SDR 11 10.0 mm
125 mm SDR 11 11.4 mm
140 mm SDR 11 12.7 mm
160 mm SDR 11 14.5 mm
1180 mm SDR 11 16.4 mm
1200 mm SDR 11 18.2 mm



PES68M17 (98289)
Standard Metric SDR 17 Stops, pair

PIPE/SDR (IPS) Wall Thickness
63 mm SDR 17/17.6 3.6 mm
90 mm SDR 17/17.6 5.4 mm
110 mm SDR 17/17.6 6.6 mm
125 mm SDR 17/17.6 7.4 mm
140 mm SDR 17/17.6 8.3 mm
160 mm SDR 17/17.6 9.5 mm
1180 mm SDR 17/17.6 10.7 mm
1200 mm SDR 17/17.6 11.9 mm



1These stop sizes are shown on these stop sets but can't be utilized on PES6DB models.
