Extended Sockets
Features
- Extended length, impact grade sockets designed for excess length threaded bolt or rod.
- Impact‑grade tool steel composition with corrosion‑resistant finish for harsh underground conditions.
- Speeds up municipal tie‑ins by providing the right tool for fast, convenient tightening of clamp and MJ bolts.
- Driven by a ½ inch square‑drive impact wrench or by hand.

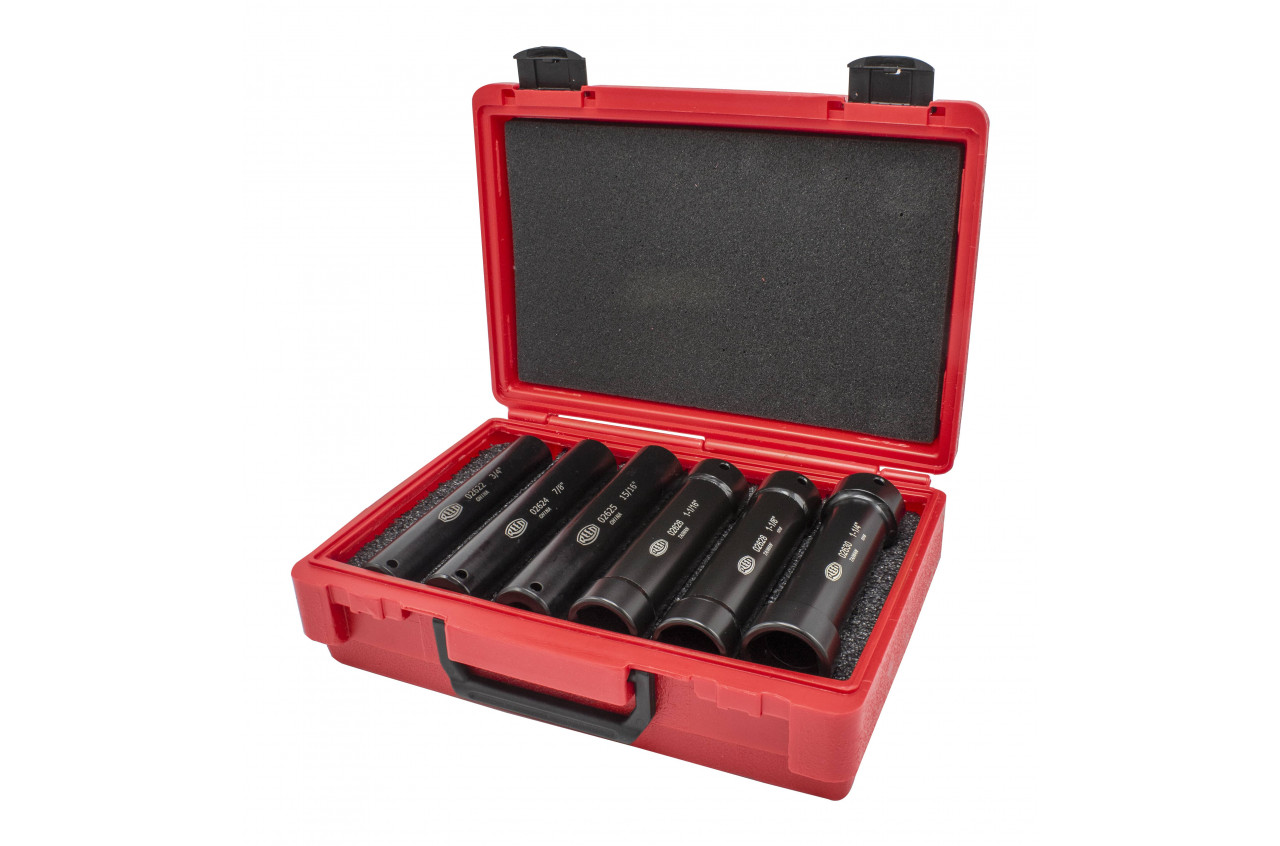

- Available individually or in a 6-piece kit.
Specifications
| Catalog No. | Item Code | Hex Size | Finish | Length | Weight | |
|---|---|---|---|---|---|---|
| lbs | kg | |||||
| EDS12 | 02622 | 3/4" | Zinc and Black Chromate | 6 1/2" | 1.5 | 0.7 |
| EDS14 | 02624 | 7/8" | Zinc and Black Chromate | 6 1/2" | 1.6 | 0.7 |
| EDS15 | 02625 | 15/16" | Zinc and Black Chromate | 6 1/2" | 1.6 | 0.7 |
| EDS17 | 02626 | 1 1/16" | Zinc and Black Chromate | 6" | 1.5 | 0.7 |
| EDS18 | 02628 | 1 1/8" | Zinc and Black Chromate | 6" | 1.5 | 0.7 |
| EDS20 | 02630 | 1 1/4" | Zinc and Black Chromate | 6" | 1.5 | 0.7 |
| EDSK6 | 02645 | 3/4”, 7/8”, 15/16", 1-1/16”, 1-1/8” and 1-1/4” | - | See Chart | 9.7 | 4.4 |
More Information
REED Extended Sockets are impact‑grade, tool‑steel sockets designed specifically for use with long threaded bolts or rods, making them ideal for tightening hex nuts on repair clamps, mechanical joint fittings, and saddles. These extended sockets are built for daily municipal use with an impact‑grade, hardened tool‑steel design that ensures durability. They can be powered by a ½ inch square‑drive impact wrench or hand‑tightened using the REED SCFR wrench. The zinc and black‑chromate finish provides a durable, corrosion resistant finish for demanding underground environments. REED offers common municipal socket sizes of 3/4 inch, 7/8 inch, 15/16 inch, 1-1/16 inch, 1-1/8 inch, and 1-1/4 inch, either individually or as a boxed set.
