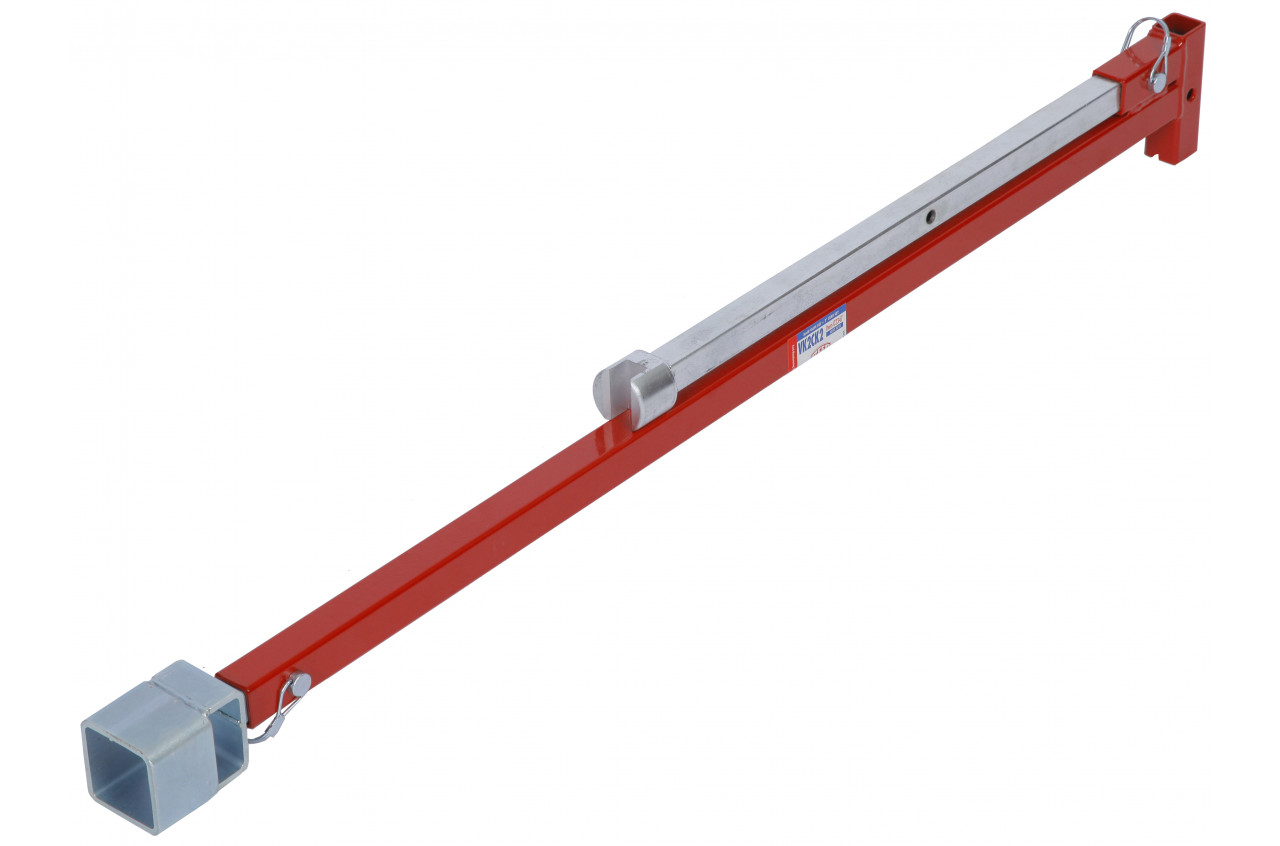

Valve & Curb Keys
Features
- Compact size fits in crowded utility trucks, behind pickup seats, or in car trunks.
- Heavy gauge, mechanical steel tubing shafts support a maximum torque of 200 foot-pounds.
- REED VK2 or VK3 saves the space, expense, and handling of 1 or 2 other single purpose keys.
- Wide choice of attachable tools allows users to customize to their systems.
- Made in USA, REED valve keys feature strong welds at critical points.
- As a safety feature, REED valve keys bend before they break.
- Use manually with included handle or add REED VOKU700PD with utility clutch for power option.
Specifications
| Catalog No. | Item Code | Description | Closed Length | Open Length[1] | Weight | |||
|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | lbs | kg | |||
| VKA | 02340 | Valve Key for 2" Operating Nut, Adjustable Length | 45 | 1143 | 81 | 2057 | 14.4 | 6.5 |
| VKP | 02341 | Pivoting Valve Key for 2" Operating Nut, Adjustable Length | 46.5 | 1181 | 82 | 2083 | 16 | 7.3 |
| VKP10 | 02345 | Pivoting Valve Key with 3-foot Extension for 2" Operating Nut, Adjustable Length | 46.5 | 1181 | 118 | 2997 | 21 | 9.5 |
| VK2CK1 | 02346 | Main Valve Key + 1" Curb Key | 45 | 1143 | 81 | 2057 | 14.4 | 6.5 |
| VK2CK2 | 02347 | Main Valve Key + 2" Curb Key | 45 | 1143 | 81 | 2057 | 14.5 | 6.6 |
| VK3CK1WHL | 02353 | Main Valve Key + 1" Curb Key + valve wheel 2 prong tool | 45 | 1143 | 81 | 2057 | 15.3 | 7.0 |
| VK3CK1ROD | 02356 | Main Valve Key + 1" Curb Key + 3/8" slotted tool for curb box rods | 45 | 1143 | 81 | 2057 | 18.7 | 8.5 |
| VK3CK1CK2 | 02357 | Main Valve Key + 1" Curb Key + 2" Curb Key | 45 | 1143 | 81 | 2057 | 18.4 | 8.4 |
| VK3CK1EXT | 02358 | Main Valve Key + 1" Curb Key + Extension shafts for additional 6' reach | 45 | 1143 | 151.6 | 3850 | 25.7 | 11.7 |
| VK3CK1EXT3 | 02366 | Main Valve Key + 1" Curb Key + 3' Extension Shaft | 45 | 1143 | 117.8 | 2991 | 19.4 | 8.8 |
| VK6KIT | 02368 | Kit contains parts to make all VK2 and VK3 variations, using the VK3 uppershaft. VK6KIT contains 32340 (8) and (1) each 92339, 92347, 92342, 92346, 92345, 92349, 92358, 92360 | 45 | 1143 | 151.6 | 3850 | 42.5 | 19.3 |
| VKP3CK1CK2 | 02369 | Pivoting Valve Key + 1" Curb Key + 2" Curb Key | 46.5 | 1181 | 82 | 2083 | 20.1 | 9.1 |
| VK2LS | 92339 | Lower Shaft with 2" Valve Key | 43.25 | 1099 | - | - | 6.0 | 2.7 |
| VKPLS | 92344 | Lower Shaft with Pivot Key Head | 43.5 | 1105 | - | - | 5.8 | 2.6 |
| VKFHRK | 92345 | Handle + Rod Key | 40 | 1016 | - | - | 3.5 | 1.6 |
| VKFH916CK | 92346 | Handle + 9/16" | - | - | 2.0 | 0.9 | ||
| VKFH34CK | 92347 | Handle + 3/4" | - | - | 7.0 | 3.2 | ||
| VKEXT3 | 92351 | Valve Key Extension, 3' | 39.75 | 1010 | - | - | 5.0 | 2.3 |
| VKF2KLK | 92354 | 2-Hole Lid Key | ||||||
| VKEXT | 92358 | Valve Key Extension, 6' | 39.75 | 1010 | 73.6 | 1869 | 11.3 | 5.1 |
Open Length represents the key as sold, without any extra pieces.
More Information
REED Valve and Curb Keys are built for strength and durability. All of REED’s water meter key assemblies will support a maximum torque of 200 foot-pounds. Upper shafts of REED water main keys are made from heavy-gauge, mechanical steel tubing plus curb stop key ends are machined from solid steel for strength. As a safety feature, keys bend before breaking to indicate overload. Made in USA, REED valve and curb keys also feature strong welds at critical points. Reliable REED water main keys can be counted on for emergency service work and regular valve exercising maintenance jobs.
Valve keys and curb keys have a telescoping design. When telescoped in, valve keys are under 4 feet long and fit easily in small utility trucks, behind pickup seats, and in car trunks. When telescoped out, lengths of 5 feet to 7 feet are possible. Add VKEXT or VKEXT3 extension bars to further extend the water main keys to maximum lengths of 10 to 12 feet.
VK6KIT is great for water and sewer utility companies to have on service trucks for emergencies because this one unit contains a variety of valve keys in one organized set. VKP and VKP10 feature a pivot head used for leaning or nonparallel valves which can occur over time as lines settle.
For greater control and versatility, a variety of curb stop tools fit the end of these water meter key T handles to turn stops on water mains. Optional clip-on tools turn small valve wheels and curb box rods. Water valve keys may be used manually or with REED CPDWW cordless power drive or 700PD electric power drive and clutch for electric or pneumatic power. With this wide variety, operators choose water main valve keys according to the needs of their systems.
When it comes to turning gate valves in the street and curb stop valves to buildings, REED's selection of Valve Keys is the most complete and compact around.
VK6KIT features the six most popular keys in one convenient kit.
Accessories & Common Parts
Valve Key Pin
